Laboratory facility
Mechanical Department is equipped with state of art, ultra-modern and sophisticated lab instruments.
The department has following laboratories:
ELEMENTS OF MECHANICAL ENGINEERING
- Model of lancashire boiler
- Model of cochran boiler
- Model of babcoke&wilcox boiler
- Model of locomotive boiler
- Model of cornish boiler
- Green economiser
- Tubewell model
- Petrol engine 2 stroke
- Diesel engine 2 stroke
- Diesel engine 4 stroke
- Pendulum pump
- Water pump
- Reciprocating pump
- Gear pump
- Centrifugal pump
- Rotary pump
- Air lift pump
- Deep well turbine pump
ENGINEERING GRAPHICS
- Set Square
- Protector
- Divider
- Scale
- Models of Solids
WORKSHOP
- Smithy shop
- Carpentry shop
- Plumbing shop
- Sheet metal shop
- Fitting shop
- Foundry shop
- Lathe machine
- Drilling machine
- Grinding machine
- Shaper machine
- Milling machine
- Arc welding machine
- Resistance welding machine
- MIG welding machine
- TIG welding machine
- Furnace with electric blower
- Lathe Tool Dynamometer
MECHANICS OF SOLIDS
- Rockwell cum brinell hardness testing machine
- Izod impact testing machine
- Universal testing machine – electronic – 20 tone
- Universal force table
- Beam reaction apparatus
- Bridge trusses – lattice bowstring type
- Bell crank lever , ( on angle iron base with weights)
- Combined inclined plane & friction slide apparatus -with angle iron base with weights ,
MATERIAL SCIENCE AND METALLURGY
- Ultrasonic flaw detector
- Magnetic particle testing machine yoke type
- Dye penetrate test kit
- Microscope-inverted metallurgical
- Dry belt surface (single belt)
- Single disc polishing machine - variable speed
- Jomney end quench apparatus -with furnace
- Microscopic specimen- metallurgical set of 23
MECHANICAL MEASUREMENT AND METROLOGY
- Venier Caliper
- Micrometer (Outside micrometer)
- Micrometer (Inside micrometer)
- Micrometer (Depth micrometer)
- Vernier Depth Gauge
- Vernier Height Gauge
- Combination Square
- Bevel Protector
- Sine Bar
- Clinometer (Vernier/Micrometer)
- Surface Plate
- Slip Gauge (calibration (AA))
- Dial bore Gauge
- Autocolimeter (Straightness & flatness/small angular)
- Plug Gauge
- Plain Ring Gauge
- Dial Snap Gauge
- Spirit level
- Angle Dekkor
- Resistance Temperature Detectors
- Bimetallic Strip/ Thermometer
- Pressure Thermometer
- Hydraulic Load Cell
- Proving Ring
- Feeler Gauge
- Screw Thread / Pitch Micrometer
- Disc Micrometer
- Gear Tooth Vernier Caliper
- Dial Gaugewith Magnet Stand (Comparator)
- Non-Contact Infrared Thermometer
FLUID MECHANICS
- Pressure measurement apparatus
- Bernoulli`s theorem apparatus
- Reynold`s apparatus
- Pipe friction loss apparatus (major loss)
- Metacentric height apparatus setup
- Pipe fittings loss apparatus (minor loss)
- Notch apparatus
- Venturimeter&Orificemeter apparatus
- Flow measuring apparatus
- Pitot static tube apparatus
- Electric pressure transducer
- Centre of pressure apparatus
AUTOMOBILE ENGINES
- Diesel fuel system
- Ignition system of petrol engine

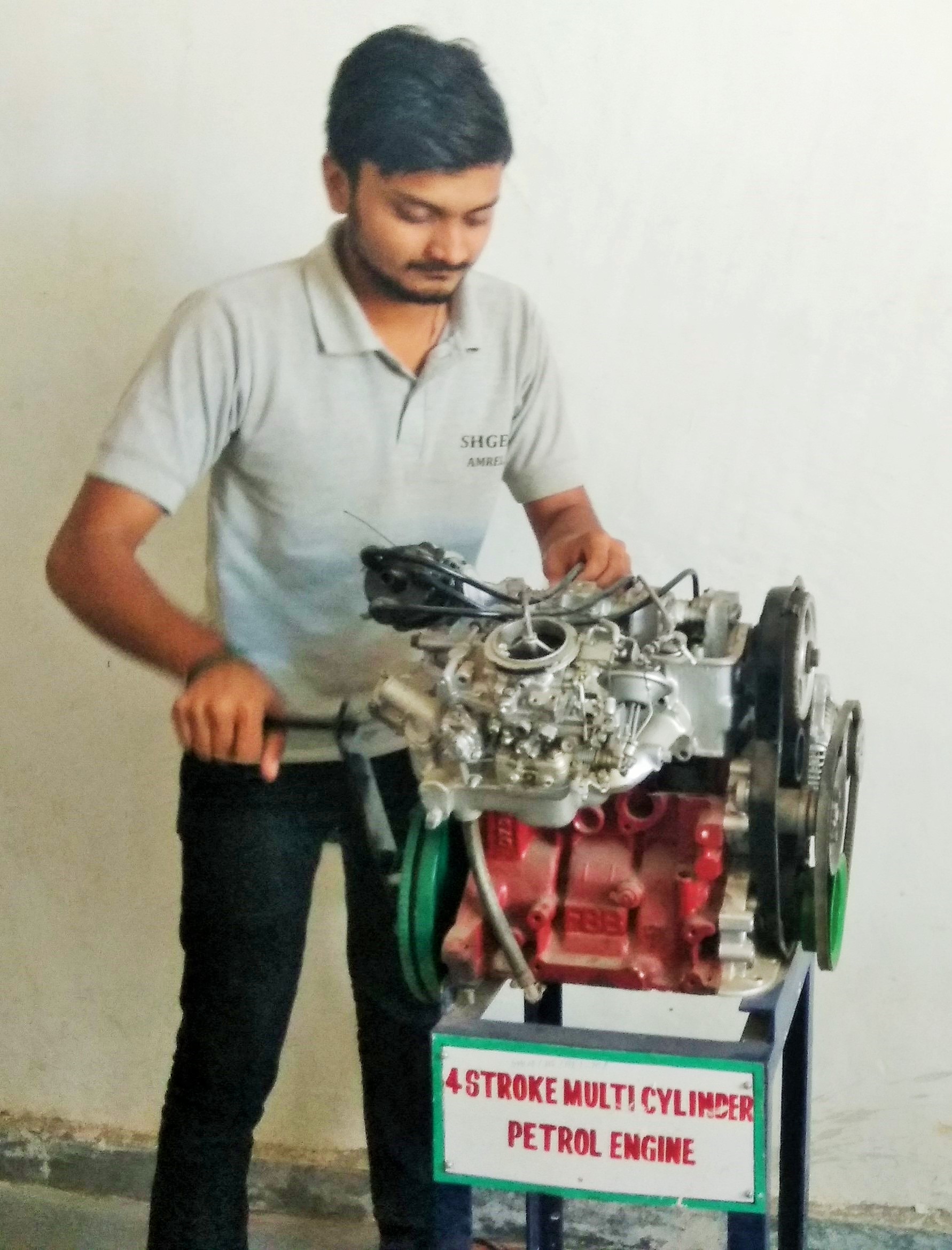

- Cut section models of multi cylinders I.C. engines (Petrol engine)
- Cut section models of multi cylinders I.C. engines (Diesel engine)
- Cut section models of single cylinder I.C. engines (Two stroke petrol engine)
- four stroke cylinder petrol engine test ring with Morce test with rope break dynamo meter
AUTOMOTIVE ELECTRICAL SYSTEMS LAB
- Layout model of automobile wiring system
AUTOMOBILE SYSTEM:
- Front engine and front wheel drive
- Front engine and rear wheel drive
- Rear engine and rear wheel drive
- Four wheel drives
- Propellers shaft
- Torque Converter
- CVT
- Cross ply tyres
- radial ply tyres
- Vacuum brakes
- Coil Spring
- Torsion Bars
- Shock absorber
AUTOMOTIVE COMPUTER CONTROLLED SYSTEM LAB
- Different sensor used in car
-
Different actuators used in car
ALTERNATIVE FUEL & POWER SYSTEMS LAB
- Exhaust gas analyzer
- Different components of LPG based vehicle
- Different components of CNG based vehicle
